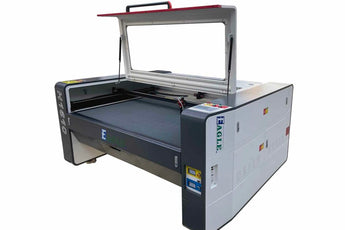

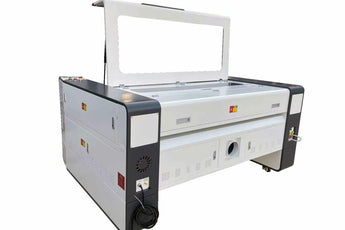

H-1610 CO2 Laser Cutting Machine
The H-1610 CO2 laser cutting machine, with 63″ x 39″ (1600 x 1000mm) working area, fixed working table, offers an economical solution for 60″ (1500mm) sheet material cutting and engraving of acrylics, cardboard, wood, textiles, two-color sign laminate, stone, and much more. Equipped with an automated camera system as standard, the machine can easily be programmed to cut designs with pinpoint precision automatically. Our laser machines are the most robust, accurate, and reliable on the market.
H-1610 CO2 Laser Cutting Machine
Our laser cutting machines are designed with user convenience and flexibility in mind. Hardware and software are integrated in a complete, ready-to-use package with many features that enhance usability and profitability.

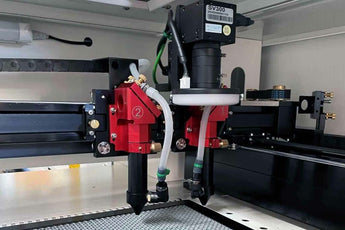

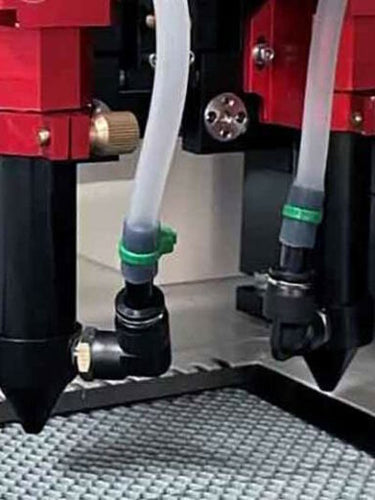

Dual Laser Heads & Air Assist
- The machine features dual laser cutting/engraving heads that allow two identical patterns to be cut simultaneously on a single sheet of material, doubling your productivity. The spacing between the heads is adjustable with a screwdriver, making it easy to adapt to different pattern widths.
- The laser head includes an air assist assembly that directs a constant stream of compressed air to protect the lens from dust and cutting vapor. This feature also reduces flaming, scorching, and charring when cutting materials like wood and acrylic.

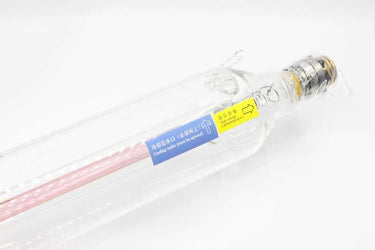

High-Power CO2 Lasers
Equipped with two 150-watt CO2 lasers, this machine effortlessly cuts through materials over 1 inch thick, such as acrylic, while maintaining exceptional precision and consistency.

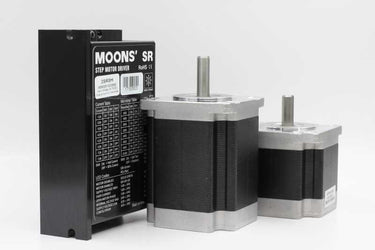

Powerful Motors for Fast and Accurate Movement
High-quality stepper motors enable the laser head to accelerate up to 2m/s² (0.2G) during cutting and up to 10m/s² (1G) during engraving, ensuring fast and precise operation.
Compatible with LightBurn Software
LightBurn software simplifies layout, editing, and control of your laser cutter. It supports various file formats, including AI, PDF, SVG, and DXF, and provides powerful tools like node editing and boolean operations. The software runs natively on Windows, Mac OS, and Linux.

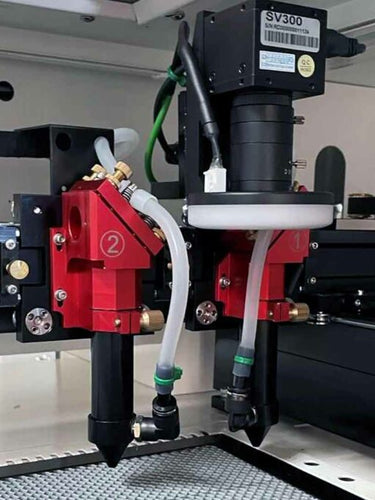

Advanced Camera System for Accurate Positioning
A camera system installed near the laser head ensures pinpoint precision by recognizing mark points on the workpiece. RDVision software can trace pre-printed or pre-made artwork to generate cutting paths automatically, enhancing accuracy and efficiency.
High-Performance Control System
The interactive control system features a high-resolution TFT LCD panel, allowing you to preview machine status, job details, and simulations before processing. Real-time status updates and adjustable parameters during operation ensure precision and flexibility.
Reliable Offline Operation
Embedded flash storage enables job transfers via USB, Ethernet, or flash drive, allowing the machine to operate offline. In the event of a power failure or emergency stop, the system saves all job data and resumes processing seamlessly to avoid material wastage.
Versatile Lens Options
Two focal lengths are available for the standard laser heads: the 2.5” (63.5mm) lens for general-purpose cutting and engraving, and the 4” (101.6mm) lens for cutting materials over 20mm thick. Both lenses maintain the same spacing from the nozzle to the material for consistent performance.
Precision and Durability with Top-Quality Optics

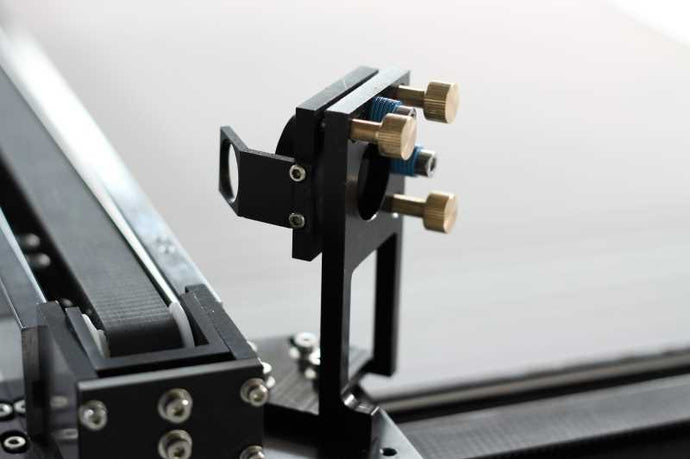

American-made optics ensure a consistent laser beam across the entire working area, delivering industry-leading cutting and engraving quality. The mirror system is designed for stability, and adjustments can be made quickly and easily using three screws per mirror if calibration is required.
Comprehensive Safety Features
Sensors throughout the machine monitor unsafe conditions, including open doors or laser cooling failures. The system automatically halts operation if any issue is detected. A panic button provides immediate and complete power shutdown for added safety.
Complete Accessory Package
The machine comes with all necessary components, including an industrial water chiller to maintain stable laser tube performance, a powerful exhaust blower with ductwork for efficient fume extraction, and everything needed for immediate setup and operation.
2-Year Warranty
Enjoy peace of mind with a 2-year warranty on all our products. We stand behind our machines, ensuring quality and durability for years to come.
Free VR Training Demo
Experience our laser machines in action with a free, interactive VR demo. Get hands-on training with realistic 3D models of the machines, all at no cost.
U.S.-Based Customer Support
Our dedicated customer support team is located in the U.S., providing you with quick and reliable assistance whenever you need it.
APPLICATIONSDS
Our laser cutting machines can be used for cutting and engraving of acrylics, cardboard, wood, textiles, two-color sign laminate, stone, and much more.
Acrylic
Paper & Cardboard
Wood
Textiles & Leather
Sign Laminate
Rubber Stamp
Stone
Glass
DOWNLOADS
Manuals, documents and software which help you get to know and use the laser.
RDWorksV8 CAD/CAM
Bundled CAD/CAM software comes with the RDCAM laser controller. A complete software solution for creating, editing, optimizing, and processing patterns for laser cutting and engraving.

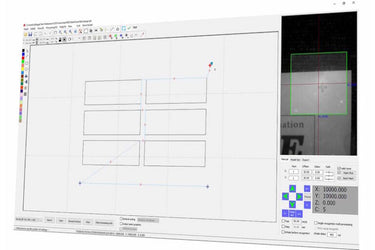

RDCMarkVision CAM
Bundled CAM software comes with the camera-automated laser controller. The software looks for the mark points on the work piece and find the accurate position of the pre-printed or pre-made artworks, then guide cutting.
RDVision CAM
Bundled CAM software comes with the camera-automated laser controller. The software traces the pre-printed or pre-made artworks on the work piece and generate the cutting paths, then guide cutting.
LightBurn Software
LightBurn is layout, editing, and control software for the laser, a native application written for Windows, Mac OS, and Linux, and talks directly to the laser, without the use of additional software.
Tech Specs
Model: H-1610 CO2 Laser Cutting Machine
Working Area: 63″ x 39″ (1600 x 1000mm), full pass-through capability for uncut sheets or long workpieces along the Y direction.
Max. Workpiece Height: 1-1/4″ (30mm)
Working Table Options: Aluminum strip table for hard and flammable materials like acrylic, cardboard, and wood. Full-support honeycomb table suitable for soft materials like paper and textiles.
Laser Source: CO2 Sealed Glass Laser Tube
Laser Power: 150W
Laser Configuration: Dual lasers
Focus Lens Options: Standard 2.5″ (63.5mm) or optional 4″ (101.6mm).
Software: RDWorks CAD/CAM compatible with Windows 7/8/10, 100% support for LightBurn software, and RDCMarkVision or RDVision CAM for the camera system.
Machine/PC Connection: USB, FLASH, or LAN
Operating Modes: Cutting, Engraving, or Combined
Control Interface: True Color TFT LCD panel with function buttons
Memory Capacity: Stores multiple jobs up to 128M
Motion System: Transmission with belt on advanced balanced bearing rails, driven by stepper motors.
Accessories Included: Air assist pump, industrial chiller, and exhaust blower
Electrical Requirement: 220V/50Hz, single phase, up to 4.5kW
