H-1325 Large Format CO2 Laser Cutting Machine
The H-1325 comes standard with a 150-watts CO2 laser and can be fitted with up to 300-watts of power, capable of cutting over one inch of acrylic. Equipped with an automated camera system as standard, the machine can easily be programmed to cut designs with pinpoint precision automatically. With the option to choose between a metal blade working area or a fine honeycomb flatbed, you have the flexibility to work with all types of materials ranging from acrylic, wood, and all types of textile and leathers. The machine’s versatility, speed, and power make it very popular with large format sign manufacturers and garment or textile factories interested in high volume production.
H-1325 Large Format CO2 Laser Cutting Machine
Our large format laser cutting machines are designed with user convenience and flexibility in mind. Hardware and software are integrated in a complete, ready-to-use package with many features that enhance usability and profitability.
Spacious Working Area
Accommodates standard 48″ x 96″ sheet materials with a working width of 51″ (1300mm) and a working length of 98″ (2500mm). Open structure design allows easy front and side loading, ensuring efficient handling of large materials and effortless retrieval of processed parts from any corner.
Adaptability for All Material Types
Offers a choice between a metal blade working area and a fine honeycomb flatbed, enabling precise processing of materials such as acrylic, wood, textiles, and leather. Small parts automatically drop into a collection bay to prevent damage during subsequent operations.

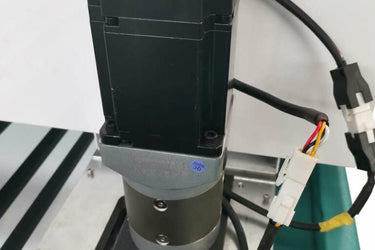

High-Performance Motion Control
Speed and Accuracy for Peak Productivity
Features servo motors from a world-leading supplier, enabling acceleration up to 2m/s² for cutting and 10m/s² for engraving. Thick, durable linear slide rails ensure long-term stability and reliability, maximizing uptime and profit.
Consistent Performance Across the Entire Work Area
Advanced Laser Optics
Fitted with top-quality American-made optics, ensuring a stable and precise laser beam. Mirror mounting and adjustment systems are user-friendly, maintaining optimal alignment with minimal effort.

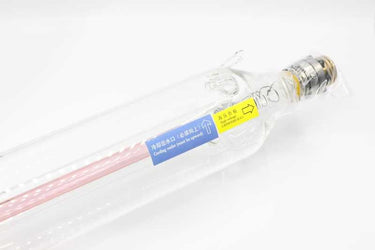

Powerful Laser Capability
Cut Through Thick Materials with Ease
Standard 150-watt CO2 laser, upgradable to 300 watts, capable of cutting over one inch of acrylic. Delivers industry-leading quality in cutting and engraving for various applications.

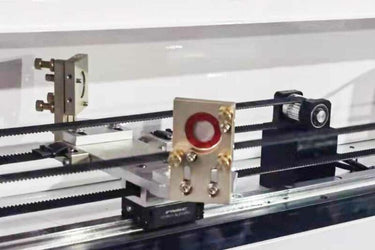

Superior Mirrors and Mirror Mounts
The laser beam is carried from the laser tube to the laser head by a series of mirrors, whose alignment is crucial for good performance. Our mirror mounting and adjusting system is the best in the world, designed for stability and ease of use. In most cases the machine will not require any alignment after installation, but if it goes out of calibration for any reason, three adjustment screws per mirror allow you to achieve perfect alignment with minimal frustration.
User-Friendly Control System
High-resolution TFT LCD panel displays real-time status and allows on-the-fly parameter adjustments. Embedded flash storage supports offline operation, while power failure recovery prevents material waste by resuming jobs from the exact point of interruption.
Seamless Workflow from Design to Cutting
Supplied with RDWorks and compatible with LightBurn, enabling design, editing, and optimization of cutting paths. Supports multiple file formats and integrates directly with the machine for streamlined processing.
Enhanced Cutting Precision for Various Thicknesses
We offer two focal lengths of lens for use in our standard laser heads. The 2.5” (63.5mm) lens is ideal for general purpose laser cutting and engraving, while the 4” (101.6mm) lens is best for cutting material over 20mm thick. The standard laser head has two lens mounting positions, so the spacing from the bottom of the nozzle to the material is the same with both lenses.
Pinpoint Accuracy with Camera-Assisted Cutting
Built-in camera system detects mark points or pre-printed artwork, ensuring precise alignment and cutting. RDVision software traces designs and generates cutting paths automatically, enhancing accuracy and efficiency.
Air Assist Mechanism
The laser head includes an adjustable air assist assembly. A constant stream of compressed air protects the lens from dust or cutting vapor, and sweeps the cutting surface, reducing the possibility of flaming, scorching, or charring when cutting materials such as acrylic or wood.
Reliable Off-line Operation and Hot Restart
If there is a power failure or the emergency stop is hit, all configuration and job status information is automatically saved. After the problem is cleared, cutting or engraving can resume exactly where it left off, preventing material wastage.
Embedded flash storage in the controller lets you transfer jobs to the machine by USB, Ethernet or flash drive and finish processing offline without relying on a connection to your PC.
Deep Collecting Bay and Pick-Up Drawer
After cutting, parts small enough to fit through the strip table will drop down to a deep collecting bay, avoiding damage by the laser during subsequent cutting operations. They can be retrieved simply by opening the drawer after cutting is complete.
A Complete Set of Accessories
We provide a complete, ready-to-use package with all the necessary parts to get your machine up and running.
A high quality industrial water chiller circulates cooling water through the laser tube, ensuring continuous and stable laser output power.
A powerful exhaust blower maintains negative pressure within the entire machine enclosure, ensuring efficient extraction of dust and fumes from both above and below the work piece.
We supply all the ductwork needed to vent the machine to the outside.
Just connect it all together and you are ready to run your first job!
2-Year Warranty
Enjoy peace of mind with a 2-year warranty on all our products. We stand behind our machines, ensuring quality and durability for years to come.
Free VR Training Demo
Experience our laser machines in action with a free, interactive VR demo. Get hands-on training with realistic 3D models of the machines, all at no cost.
U.S.-Based Customer Support
Our dedicated customer support team is located in the U.S., providing you with quick and reliable assistance whenever you need it.
APPLICATIONSDS
Our large format laser cutting machines can be used for cutting of acrylics, cardboard, wood, textiles, and much more.
Acrylic
Paper & Cardboard
Wood
Textiles & Leather
DOWNLOADS
Manuals, documents and software which help you get to know and use the laser.
RDWorksV8 CAD/CAM
Bundled CAD/CAM software comes with the RDCAM laser controller. A complete software solution for creating, editing, optimizing, and processing patterns for laser cutting and engraving.
RDCMarkVision CAM
Bundled CAM software comes with the camera-automated laser controller. The software looks for the mark points on the work piece and find the accurate position of the pre-printed or pre-made artworks, then guide cutting.
RDVision CAM
Bundled CAM software comes with the camera-automated laser controller. The software traces the pre-printed or pre-made artworks on the work piece and generate the cutting paths, then guide cutting.
LightBurn Software
LightBurn is layout, editing, and control software for the laser, a native application written for Windows, Mac OS, and Linux, and talks directly to the laser, without the use of additional software.
Tech Specs
Working Area: 4′ x 8′ (1300 x 2500mm)
Max. Workpiece Height: 1-1/4″ (30mm)
Working Table: Aluminum strip table for hard and flammable materials (acrylic, cardboard, wood, etc.)Optional full-support honeycomb table for soft material processing (paper, textiles).
Laser Source: CO2 Sealed Glass Laser Tube
Laser Power Options: 150W / 300W
Laser Configuration: Single laser
Focal Lens Options:Standard 2.5″ (63.5mm) / Optional 4″ (101.6mm)
Software: RDWorksV8 CAD/CAM, compatible with Windows 7/8/10, 100% support for LightBurn software
Machine/PC Connection: USB / FLASH / LAN
Operating Mode: Cutting / Engraving / Combined
Control Interface: True Color TFT LCD panel with function buttons
Memory Capacity: Multiple jobs storage up to 128M
Motion System: X axis: Belt transmission on advanced linear rails, driven by stepper motors. Y axis: Rack and pinion transmission on advanced linear rails, driven by servo motors
Accessories: Air assist pump, industrial chiller, and exhaust blower included
Electrical Requirement: 220V/50Hz, single phase, up to 6.0kW
Size: 79″ x 142″ x 39″ (2000 x 3600 x 1000mm)
Net Weight: 1940lb (880Kg)
